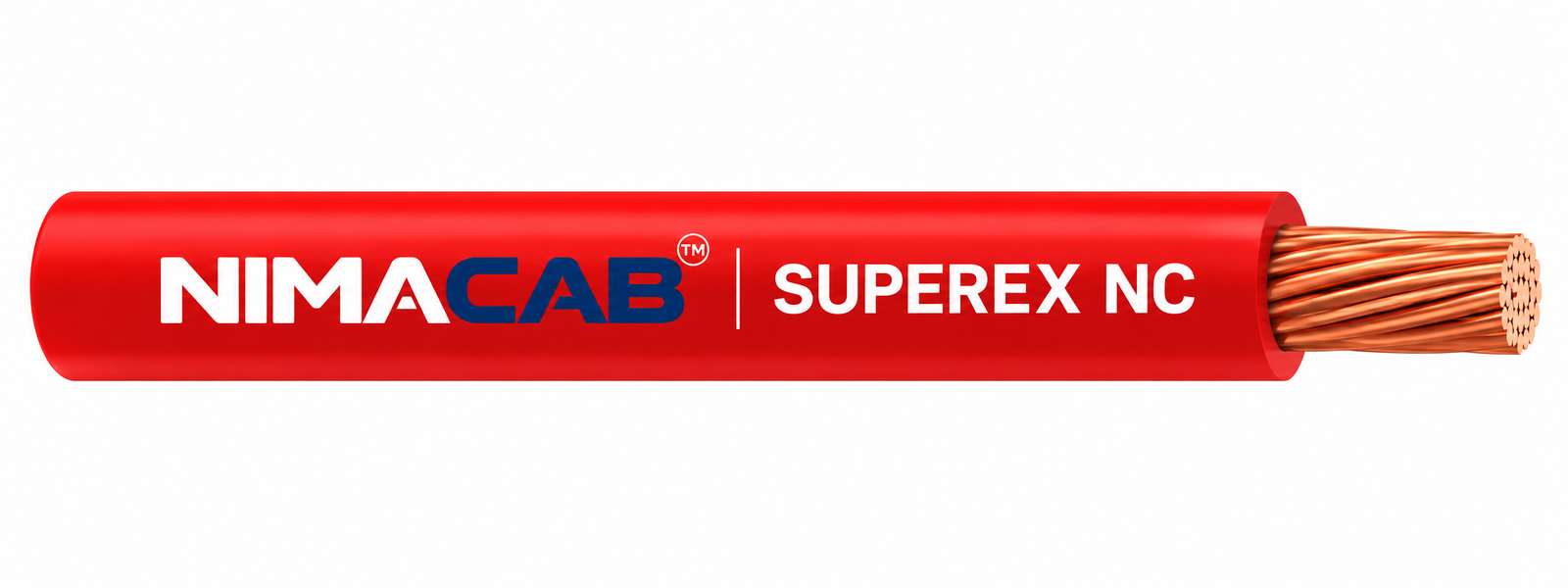

India’s 1st REACH and RoHS Compliant Cable | Heat Resistant & Flame Retardant Cable.
Application
Superex NC is designed for fixed wiring installations where enhanced mechanical strength, thermal endurance, and fire safety are critical. With Heat Resistant and Flame Retardant insulation, it ensures safe and reliable performance even under high temperatures. Its special conductor construction makes it ideal for fixed wiring in modern residential and commercial spaces. The distinctive green identity reflects a conscious step toward safer, stronger, and more responsible wiring solutions.
Technical Data
Approvals: IS 694 marked, FIA/TAC
Voltage Grade: Up to and including 1100V
Conductor: Thin strands of electrolytic copper are multi-drawn for uniformity of resistance, dimension and flexibility.
Insulation: High-grade Heat Resistant and Flame Retardant (HR FR) PVC insulation is used. Specially engineered to withstand elevated temperatures while effectively retarding flame propagation, ensuring enhanced safety and long-term performance.
Insulation Conformity: IS 5831, Type C – HR 85˚C + FR
Colours: Red, yellow, blue, black, green, grey & white
Marking: The cables are printed with marking of ‘SUPEREX NC’
Packing: 90 mtr. coil is packed in protective cartons.
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required:
01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – grey, 07 – white.
| Part Number | Nominal Cross Sectional Area (sq. mm) |
Number/Max. Dia. of Strands |
Nominal / Insulation Thickness (mm) | Approx. Overal Diameter (mm) | Max.DC Conductor Resistance at 20°C (Ω/km) |
*Current Rating (Amps) | |
| Casing | Concealed | ||||||
| 01010102xx40 | 0.75*** | 24/0.21 | 0.6 | 2.3 | 26.0 | 10 | 9 |
| 01010103xx40 | 1.0** | 14/0.31 | 0.6 | 2.6 | 18.1 | 16 | 15 |
| 01010104xx40 | 1.5** | 22/0.31 | 0.7 | 3.0 | 12.1 | 19 | 18 |
| 01010105xx40 | 2.5** | 36/0.31 | 0.8 | 3.7 | 7.41 | 26 | 22 |
| 01010106xx40 | 4.0*** | 56/0.31 | 0.8 | 4.1 | 4.95 | 32 | 27 |
| 01010107xx40 | 6.0*** | 84/0.31 | 0.8 | 4.6 | 3.3 | 39 | 34 |
- * As per IS 3961 (Part V)
- ** As per conductor Class 2 of IS 8130
- *** As per conductor Class 5 of IS 8130
Properties
| Test | Test Method | Values |
| Limited Oxygen Index | Is 10810 P-58 | > 29 % |
| Limited Temp. Index | Is 10810 P-64 | > 250°C |
