Electron Beam Cross-linked | HFFR (Halogen Free Flame Retardant) insulation | Non-Toxic & Non-Corrosive | Does not melt up to 900ᵒC
Application
FireX NC is designed for critical circuits in environments where enhanced fire safety, low smoke and zero halogen emissions are essential. It is best suited for high-traffic public and commercial spaces such as airports, auditoriums, hospitals, hotels, schools, malls, and retail outlets. Its high-performance insulation, durability, and reliability make it an ideal choice for modern infrastructure with demanding safety and longevity expectations, including high-rise and densely occupied establishments.
Statutory Requirements:
The Central Electricity Authority (CEA) Regulation 2023 has made it mandatory to use Halogen Free Flame Retardant cables in public infrastructures (airports, hospitals, hotels) irrespective of height.
Technical Data
Approvals: IS 17048 marked, FIA/TAC
Cable Code: XZ
Voltage Grade: Up to and including 1100V
Conductor: Strands of electrolytic annealed plain copper are multi-drawn for uniformity of resistance, dimension and flexibility.
Insulation: E-Beam Crosslinked HFI-XL 90 Halogen Free Flame Retardant (HFFR)
Colours: Green, Black, Red, Yellow, Blue, Grey, White

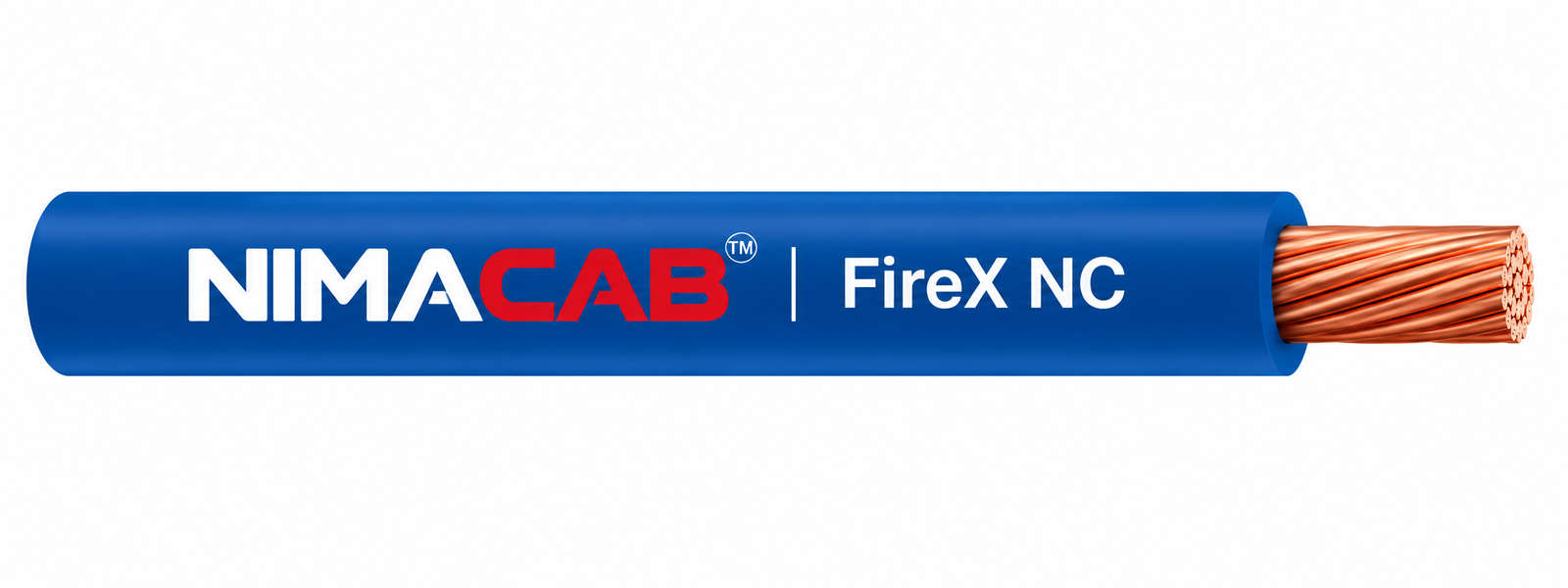

Marking: The cables are marked ‘FireX NC’

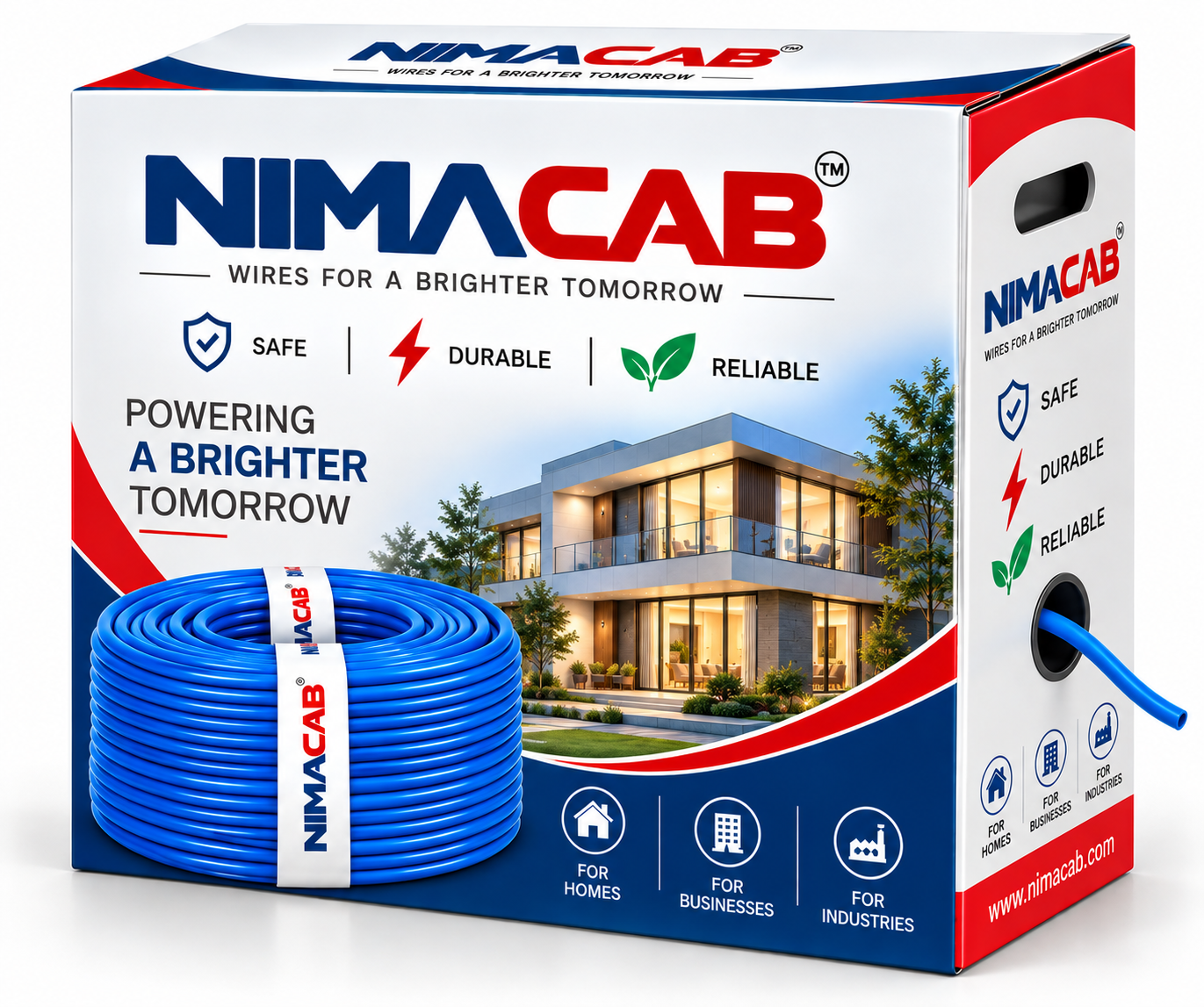

Packing: 90 meter coils packed in protective cartons.
Properties
- It does not melt up to 900°C
- Temperature range: -25°C to +110°C
- Max. short circuit temperature rating: 300°C
- Chlorine Free: Non-toxic & Non-corrosive
- Smoke emission is negligible & transparent
- Excellent water resistance properties
- Abrasion resistant
- Weather resistant
- Anti-Rodent & Anti-Termite
- Offers extented service life
- The victims trapped in fire do not suffocate and this facilitate fire fighting operations.
- Self-extinguishing and flame retardant according to IS 10810 P – 61
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required
01 – Green, 02 – Black, 03 – Red, 04 – Blue, 05 – Yellow, 06 – Grey, 07 – White
| Part Number | **Nominal Cross Sectional Area (sq. mm) |
Number/Max. Dia. of Strands |
Nominal / Insulation Thickness (mm) | Approx. Overal Diameter (mm) | Max.DC Conductor Resistance at 20°C (Ω/km) |
*Current Rating (Amps) | |
| Casing | Concealed | ||||||
| 01010102xx60 | 0.75 | 24/0.21 | 0.6 | 2.3 | 26.0 | 18 | 13 |
| 01010103xx60 | 1.0 | 32/0.21 | 0.6 | 2.5 | 19.5 | 27 | 21 |
| 01010104xx60 | 1.5 | 30/0.26 | 0.6 | 2.8 | 13.3 | 35 | 27 |
| 01010105xx60 | 2.5 | 50/0.26 | 0.7 | 3.4 | 7.98 | 57 | 34 |
| 01010106xx60 | 4.0 | 56/0.31 | 0.8 | 4.1 | 4.95 | 61 | 46 |
| 01010107xx60 | 6.0 | 84/0.31 | 0.8 | 4.6 | 3.3 | 78 | 59 |
- *As per IS 3961 (Part V)
- ** As per conductor Class 5 of IS 8130
Test Parameters for Assessment of Halogen
| Test | Test Method | Values |
| pH | IS 17048 | ≥ 4.3 |
| Conductivity | IS 17048 | ≤ 10 μs/mm |
| Chlorine and bromine expressed as content of HCL | IS 10810 P – 59 | ≤ 0.5 % |
| Presence of fluorine | IS 17048 | ≤ 0.1 % |
